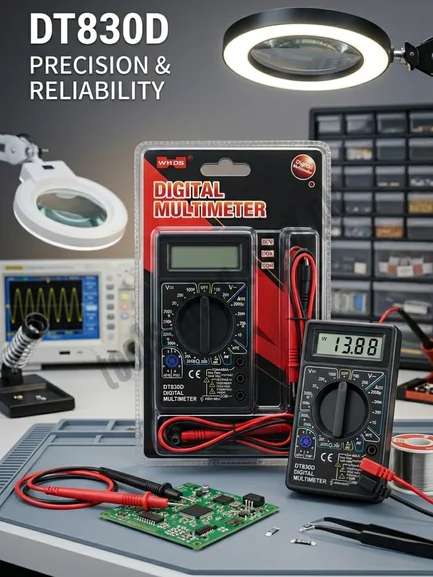

Pocket Digital Multimeter Kit DT830D – Professional Electronic Tester Meter with LCD Display, Test Probes, AC/DC Voltage, Current & Resistance Detector
Original price was: ₨1,000.₨850Current price is: ₨850.
Specifications
| Feature | Details |
| Model Number | DT830D |
| Tool Type | Pocket Digital Multimeter / Electronic Multi-Tester |
| Display Type | Clear Digital LCD Screen |
| DC Voltage Range | 200mV / 2000mV / 20V / 200V / 1000V |
| AC Voltage Range | 200V / 750V |
| DC Current Range | 2000µA / 20mA / 200mA / 10A |
| Resistance Range | 200Ω / 2000Ω / 20kΩ / 200kΩ / 2000kΩ |
| Special Functions | hFE Transistor Test (NPN/PNP), Diode Test, Continuity Buzzer |
| Safety Features | Overload Protection, Fused Terminal (Up to 500V Max) |

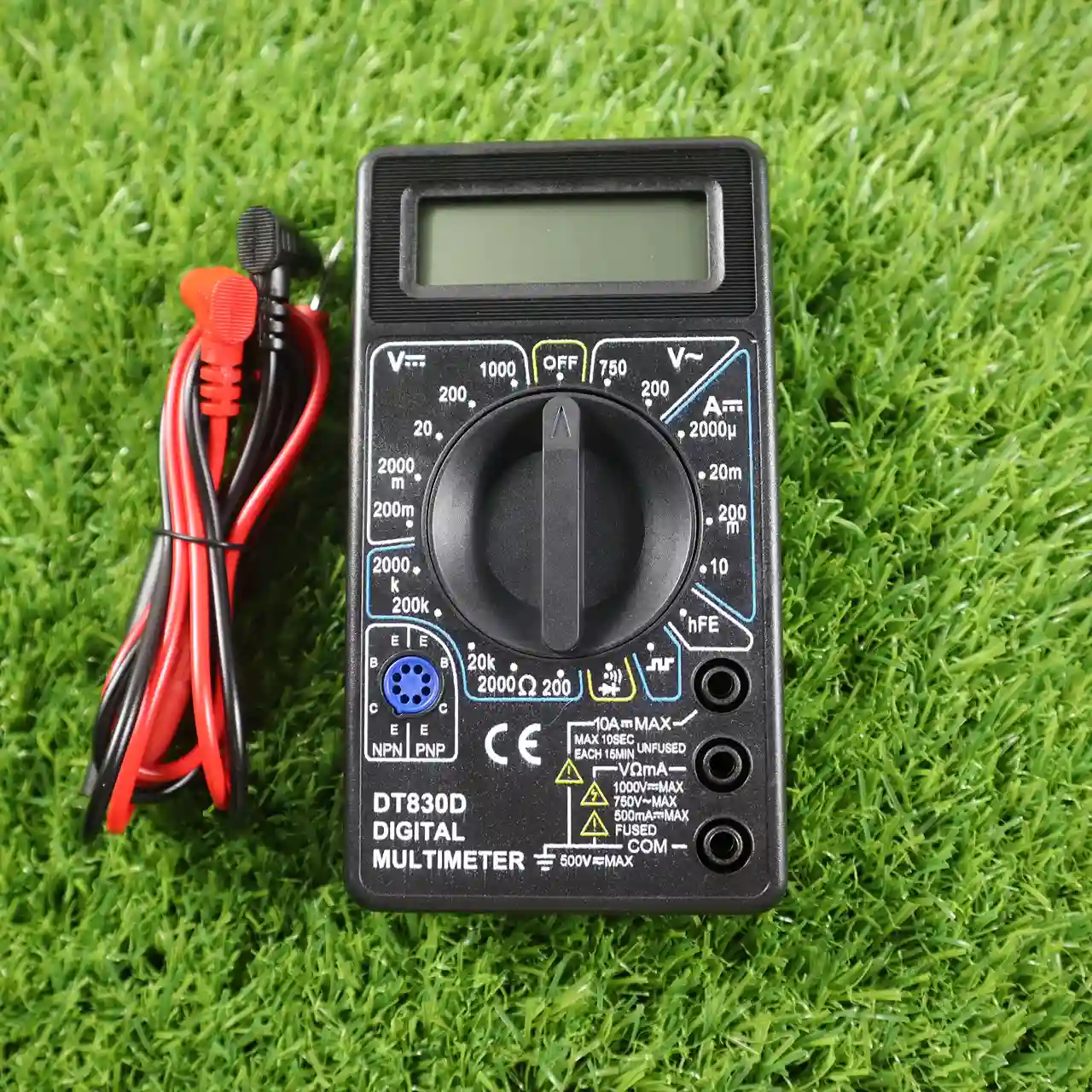

Troubleshoot electrical issues with absolute precision using the compact DT830D Digital Multimeter. An indispensable tool for electricians, electronic hobbyists, automotive technicians, and home DIYers, this pocket-sized multi-tester provides quick and accurate readings for a wide range of everyday electrical diagnostics.

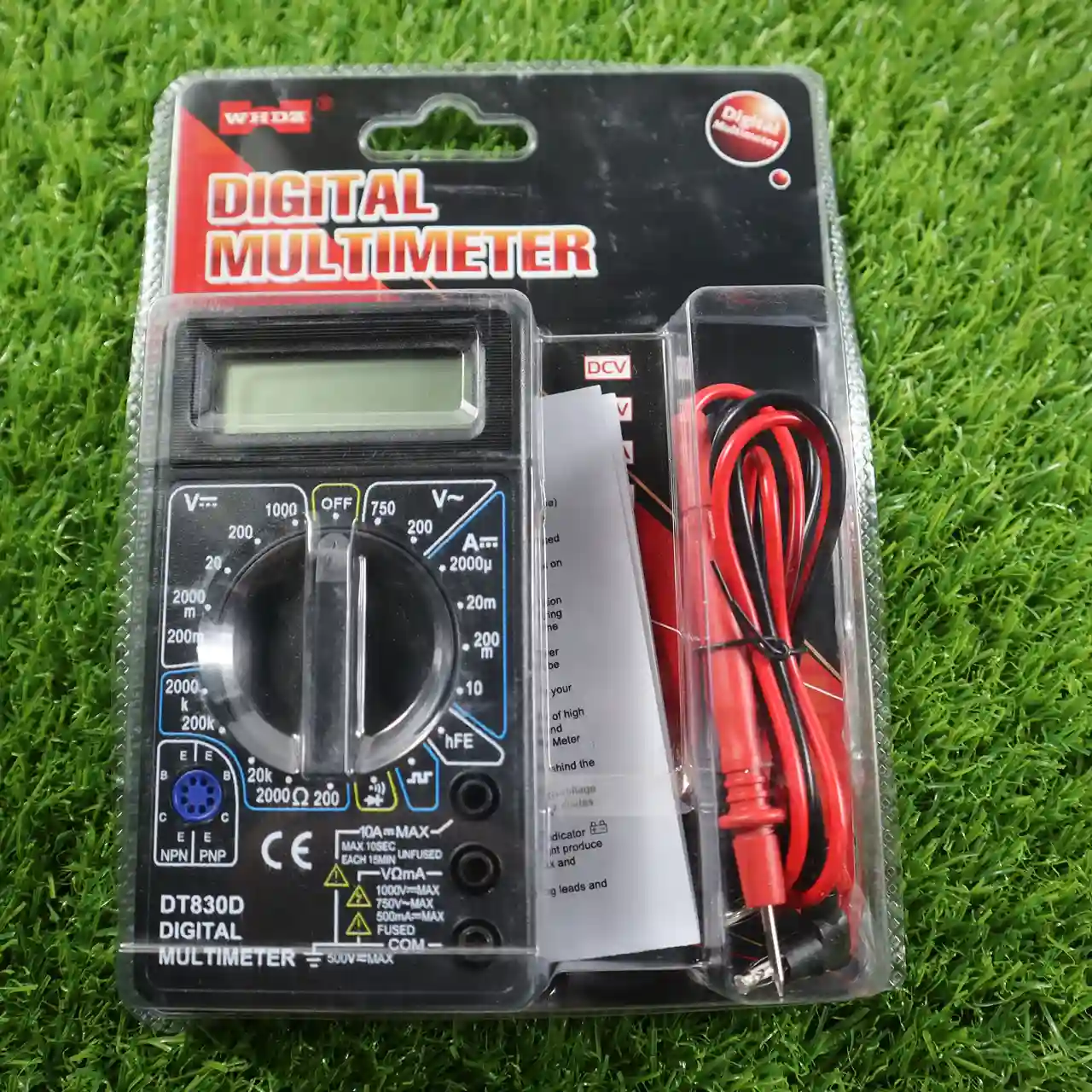

Equipped with a clear, easy-to-read LCD digital display, this versatile device measures AC/DC Voltage, DC Current, and Resistance with reliable stability. It features a built-in diode tester, an hFE transistor test socket (NPN/PNP), and an audible continuity buzzer for fast circuit tracing. Designed with overload protection on all ranges, the DT830D comes safely sealed in a blister pack complete with heavy-duty insulated red and black test leads and an instructional user manual, making it ready to deploy on any test bench or tool kit.
Tool Station Pakistan PVT Limited
Uses
Household Electrical Testing: Safely check wall outlets, extension cords, light switches, and home appliances to diagnose wiring faults.
Battery & Automotive Diagnostics: Test car, motorcycle, or solar batteries, fuses, and alternator outputs by measuring direct current (DC) voltage.
Electronics & PCB Repair: Perfect for testing resistors, transistors, diodes, and capacitors on circuit boards during soldering or repair work.
Circuit Continuity Tracing: Use the audible buzzer mode to instantly find broken wires, bad solder joints, or open circuits in complex wiring harnesses.
